Troubleshooting Issues with Allie for Android

This article will go over some general troubleshooting recommendations if you are having issues using the Allie application on Android.

You are also encouraged to contact Codex Health Support by emailing support@codexhealth.com, using our online web form here, or via the "Feedback" option in Allie.


Settings in Allie
Readings from Allie Not in Foresight
General Pairing Issues
Issues with Glucometers

Issues with the SC-150 Scale
Issues with the Omron Blood Pressure Cuffs (HEM-9200/9210 & BP5250)

Settings in Allie

First, please make sure that you are using the most up-to-date version of Allie. We recommend turning on Auto Update for Allie (more details here). You can also force an update at any time by following these instructions.

If you are still having issues with connecting to devices, please check all of the following settings. These are generally set up during the initial installation of Allie:

  • Ensure that Bluetooth is turned ON
    If Allie is on, and you are not able to initially pair your device, one thing to try is turning Bluetooth OFF, and then back ON again

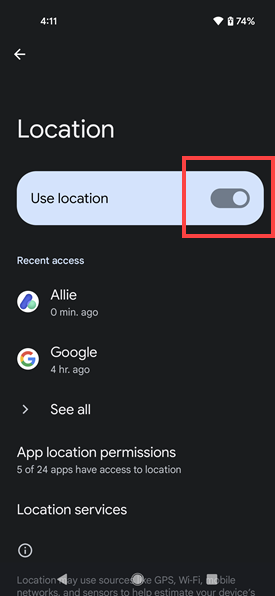

  • Make sure that Location is turned ON

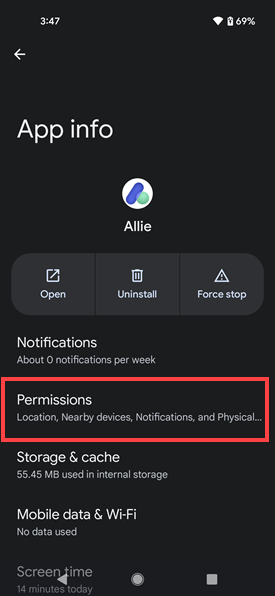

  • Made sure that Allie has permission to access "Location", Nearby Devices", and "Physical Activity". android-appinfo-permissions-needed.png

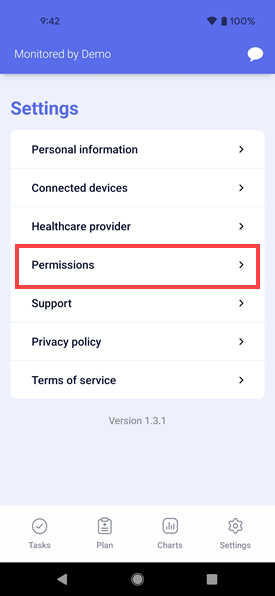

    You can check these permissions using the "Permission" option in Allie

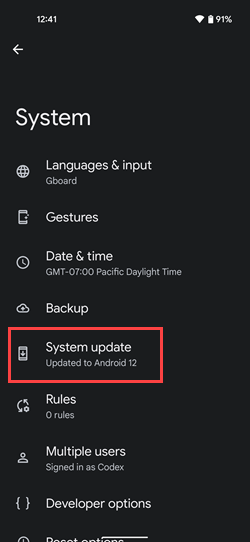

We also recommend making sure you are using the most recent version of your phone's operating system. This can be checked/updated by going to Settings --> System and checking "System Update" on your phone

Readings from Allie Not in Foresight

If you are able to get data into Allie, but are being told that information is not available for your provider, the first thing to try would be to restart the phone.

After restarting the phone, please open Allie and keep it open for a couple minutes. This should reset the connection and data should again be sent from Allie into Foresight.

General Pairing Issues

Readings Not Sent to Allie

If you have successfully paired the your bluetooth device and seeing the readings on the device but NOT on your phone, please first make sure that the Allie application is open whenever you take a reading.

If you've taken readings previously that are not visible in Allie, those readings should be sent to Allie the next time the devices synchronizes with the Allie application.

Additionally, if readings from your bluetooth device are not showing up in Allie, please double-check that the time of your device is accurate. If the time of your device is too far ahead of the time on your phone, this could cause delays with the synchronization process.

Pairing Issues

You can also check the status of the paired device at any time by going to the "Connected Devices" screen in Allie. Any paired devices should be listed, along with the model ID. If the device is turned on, it should be "Connected", otherwise you will see the time and date of the "Last sync".


If you do not see your device listed, that indicates the device is not paired. In this case, try the pairing process from the beginning.


In some cases, it is possible the device may still be paired, but not listed above. You can also check for any connected bluetooth devices by going to your phone's System application and "Connected Devices".


You can also get to this screen by long-pressing the "Bluetooth" option when pulling down from the top:

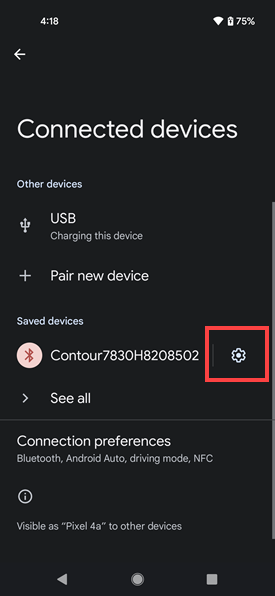

If the device you are looking for is listed under "Saved devices", do the following:

  • Tap the "gear" icon"
  • Select the "Forget" option (your phone may say something slightly different)
  • Now try the the pairing process again from the beginning

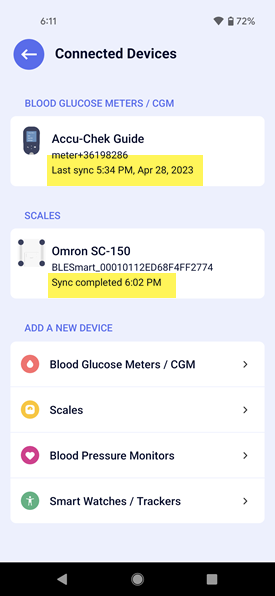

Another way to confirm if the device is connected is to go to the Settings --> Connected Devices screen and turn the device on (or take a measurement). In that case, you should see the "last sync" time change to "Sync completed"


If everything appears to be working as expected, but you are still not seeing your readings, tap the name of the device and confirm you wish to "Unpair" in Allie.


Then check your phone's Bluetooth settings to make sure the device is no longer listed. If it is, tap into it and use the "Forget" option.


You can then try the pairing process for the device from the beginning

Issues with Glucometers

The most common issue with glucometers is not seeing your reading in Allie immediately after taking it. Please note that it could take a minute or two for your reading to synchronize.

In many cases, you can also try turning the glucometer off and on again to force a synchronization. If this does not resolve your issue, please read on for more details.

Contour Next One

Cannot Take a Blood Glucose Reading

When you add your blood (or the control solution) to a strip that is inserted into the Contour, you should see a screen prompting you to add a small drop of blood to the strip.


In some cases, the amount of blood may be insufficient, in which case you'll see the following:


This indicates you need to add another drop of blood until you see the countdown which confirms the Contour is measuring your glucose levels. If you do not add enough blood within a minute, you'll see an "E1" error message indicating to try again with a new strip.


Additionally, if you see an E2 code when inserting a strip for the first time, this indicates there is an issue with the strip you've used.


Simply try another strip and you should be prompted for a reading.

Not Prompted When Inserting Strip into Contour

If the process appears to have been successful, but when you insert a strip in the Contour you are NOT prompted to take a reading and instead only see the "Bluetooth" symbol pairing appears successful, but you are NOT prompted to take a reading, and only see the "Bluetooth" symbol, please contact Codex Support using this webform. Our staff will follow-up to schedule a troubleshooting session, as this issue can likely be addressed by the following:

  • Unpair the Contour from Allie
  • Install the Contour Diabetes manufacturer application
  • Sign in and pair your device with this application
  • Turn Bluetooth off on your phone
  • Take a Blood Glucose measurement while Bluetooth is turned on
  • Uninstall the Contour Diabetes manufacturer application
  • Turn Bluetooth on for your phone
  • Go back to Allie and see if the device is listed
    • If so, refresh and see if the recent reading is uploaded
  • You can also try taking another reading

Given the complexity of this solution, we recommend contacting Codex Health Support for assistance.

Issues with the Omron SC-150 Scale

Check Scale Display

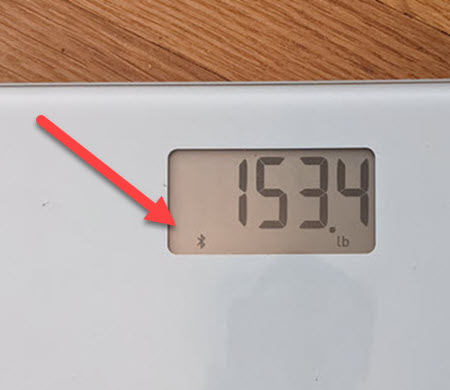

When you take your weight with the scale, please make sure you are seeing your weight flash when it has been stable. You should also see the bluetooth symbol along with your weight:


If you do not see the bluetooth symbol, please wait for the screen to go blank and try taking your weight again. If issues continue, you can try resetting the scale:

Reset the Scale

If the general troubleshooting steps above are not resolving your issues with the Omron SC-150 scale, you can reset it at any time. First, we recommend unpairing the scale in Allie, and then confirming that the scale is not listed as a previously connected device on your phone.

Then, hold the bluetooth button on the scale down for at least 2 seconds until you see the flashing "P" and bluetooth symbol, then release.


Now, hold the bluetooth button down for at least 5 more seconds until you see the "CLr" screen and the bluetooth symbol stops flashing.


Then turn the scale over and press the "Set" button. When the display stops flashing, the scale has been reset.

The scale will then turn off after about 10 seconds, and you can start the pairing process again from the beginning

Issues with the Omron Blood Pressure Cuffs (HEM-9200/9210 & BP5250)

There are slight differences between the Omron Blood Pressure cuffs, but generally speaking they all work similarly and display the same error messages.

Error Messages

The Blood Pressure cuffs may display error messages if it is unable to take a reading. You can consult the owners manual for more details on each message, but here are the most common ones:

E1 - indicates there is either an issue with the air plug, cuff, or that the cuff is not tight enough. Please check your connections and try again.

E2 - indicates that there was too much movement during the reading. Please try taking a measurement again and remain as still as possible until the cuff has finished the process.

Synchronization Issues

BP5250: The consumer Blood Pressure cuff has a single bluetooth/connectivity icon that indicates whether the readings are being sent to Allie:


If you do not see this symbol, that likely means there is an issue with synchronization. Please check to make sure the cuff is currently paired following the instructions above.

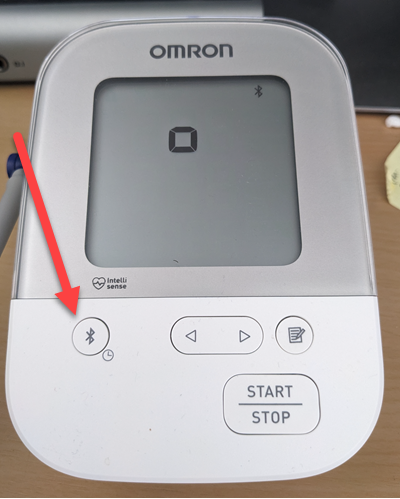

You can also force a synchronization with the BP5250 by pressing the Bluetooth/connection button:

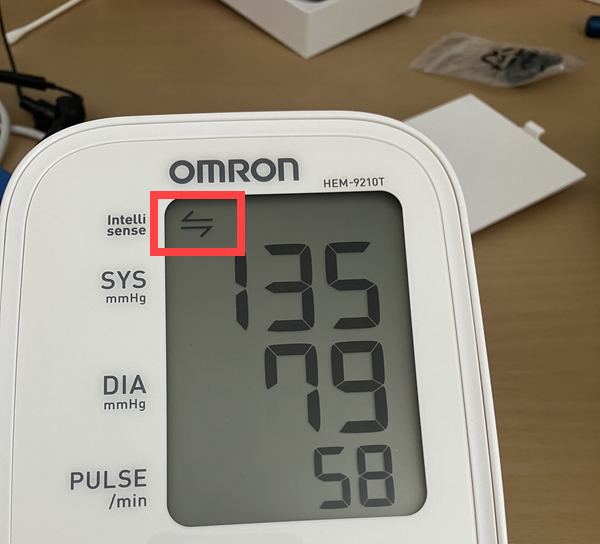

HEM 9200/9210-T: The commercial Omron Blood Pressure cuffs have two bluetooth symbols that are displayed to indicate whether the data is being sent from the cuff to Allie. In this picture, the image at the top-left indicates the reading was successful. You will see the values in Allie after this image disappears (the measurement will remain on the screen until you turn it off):


If you do not see this symbol, and instead see the one to the right, that indicates the reading will not be sent to Allie:


If you continue to see this symbol when taking your blood pressure, please try pairing the cuff again.

Re-pairing the Blood Pressure Cuff

BP5250: After un-pairing the cuff (more details above), try the pairing process again by starting at Step 1 and pressing the bluetooth button for 3-5 seconds to put the cuff in pairing mode. Then follow the steps to re-pair the cuff and try taking another measurement.

HEM-9200 / 9210-T: This cuff requires an additional step to reset the pairing process. After un-pairing the cuff (more details above), take one of the batteries out of the cuff and then tap the "Start/Stop" button on the cuff 3 - 4 times.

Then open Allie and start the pairing process again by starting at Step 1. Re-insert the battery into the cuff to see the flashing "P" symbol indicating the cuff is in pairing mode. Then follow the steps to re-pair the cuff and try taking another measurement.
